Key Payloads - Official Website

This solution integrates five advanced modules: a 1/0.98-inch wide camera, a 34x continuous optical zoom camera, a 1K infrared thermal imager (PWG01 only), a laser rangefinder, and a near-infrared (NIR) auxiliary light.

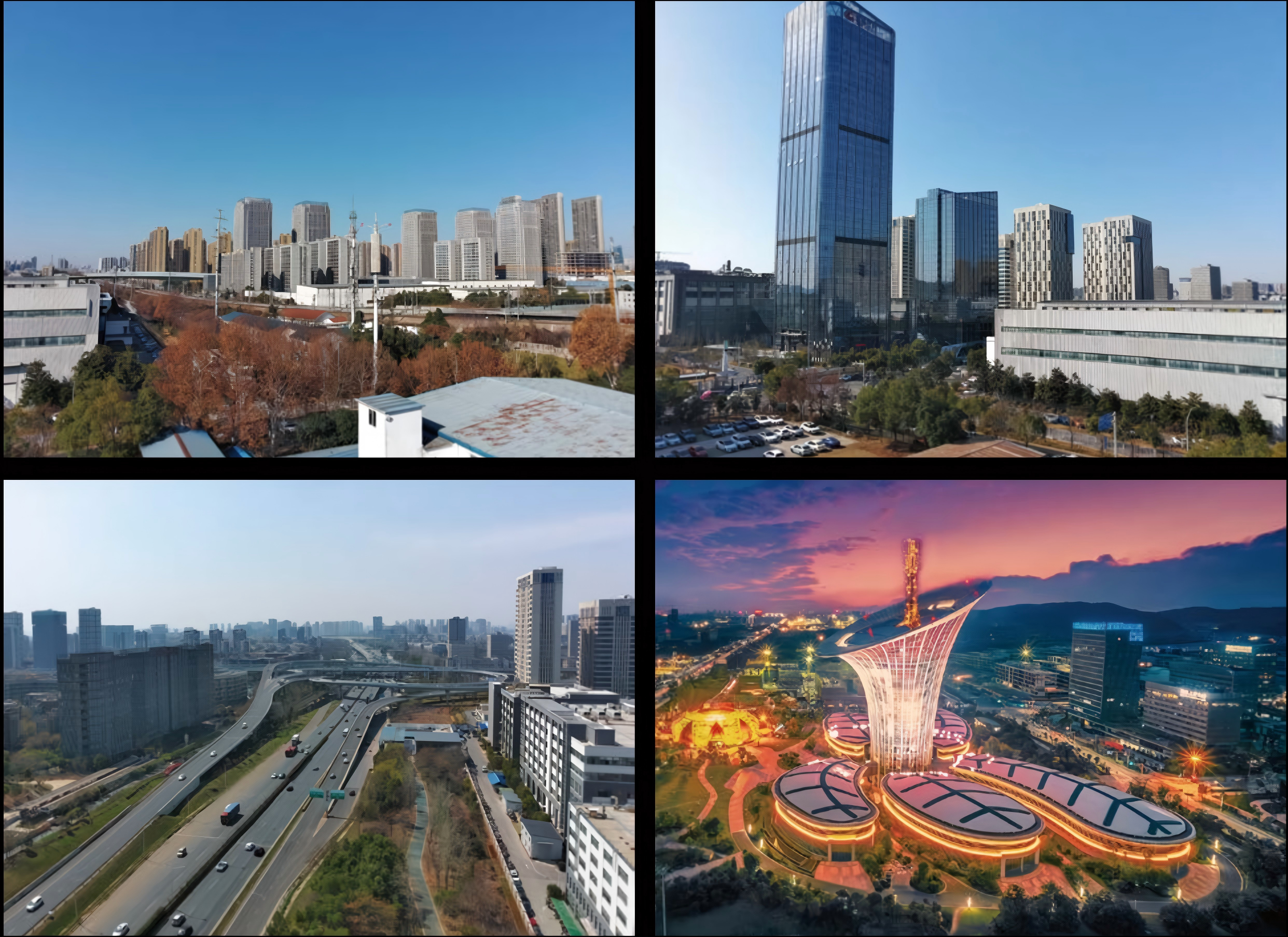

Wide Camera for Ultra-Clear Detail

1/0.98-inch wide-angle sensor and 50MP ultra-high resolution enable a larger photosensitive area and increased light intake, rendering purer and cleaner images. Combined with AI-powered hypersensitive technology, the solution delivers high dynamic range imaging even in night scenes or strong backlight, precisely reproducing both shadow details and highlight gradations.

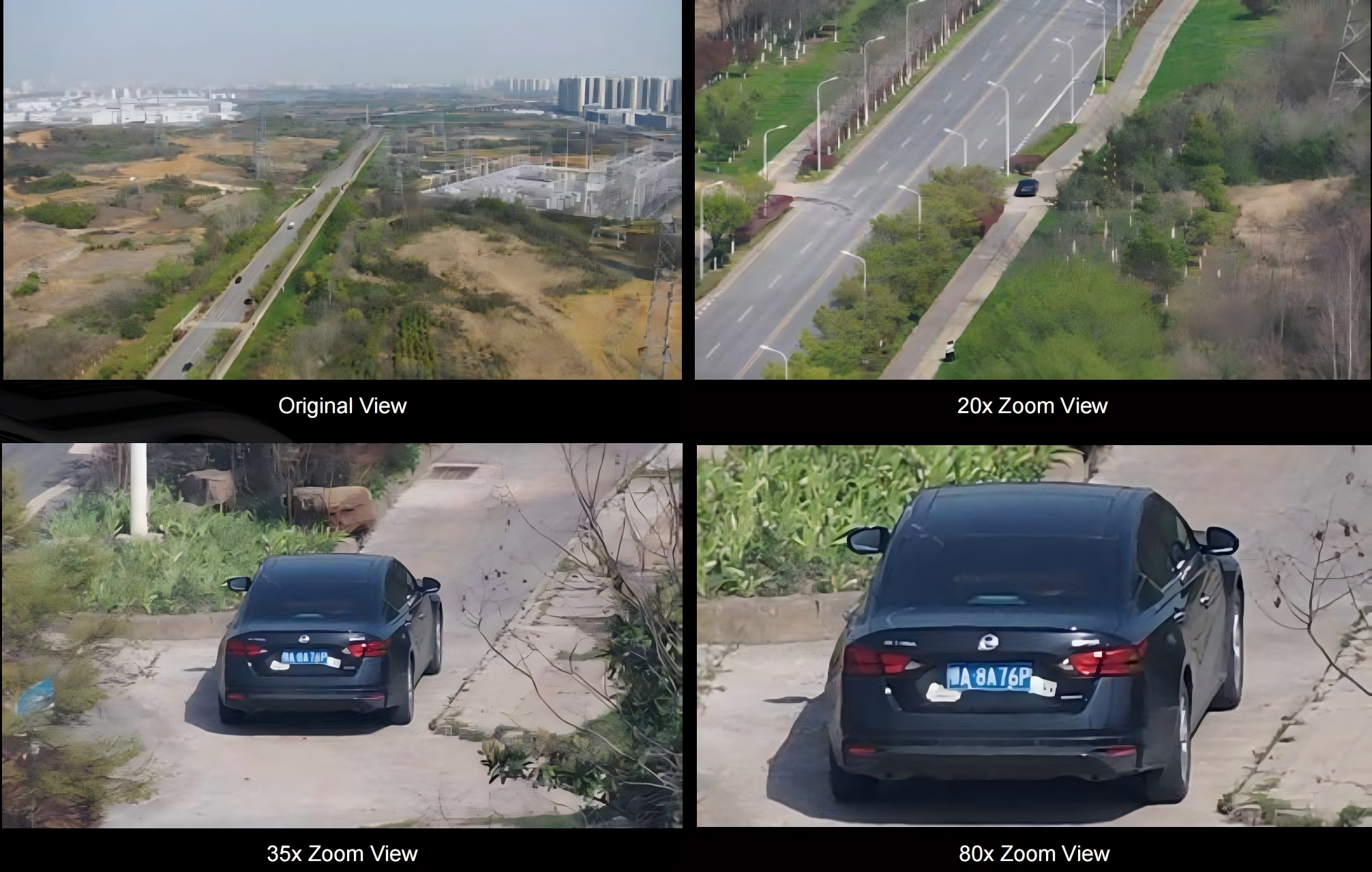

34x Optical Zoom for Boundless Telephoto Capability

Featuring 34x continuous optical zoom and up to 544x hybrid zoom, this solution supports reading license plates as far as 800 m away, pushing the boundaries of telephoto imaging with exceptional clarity.

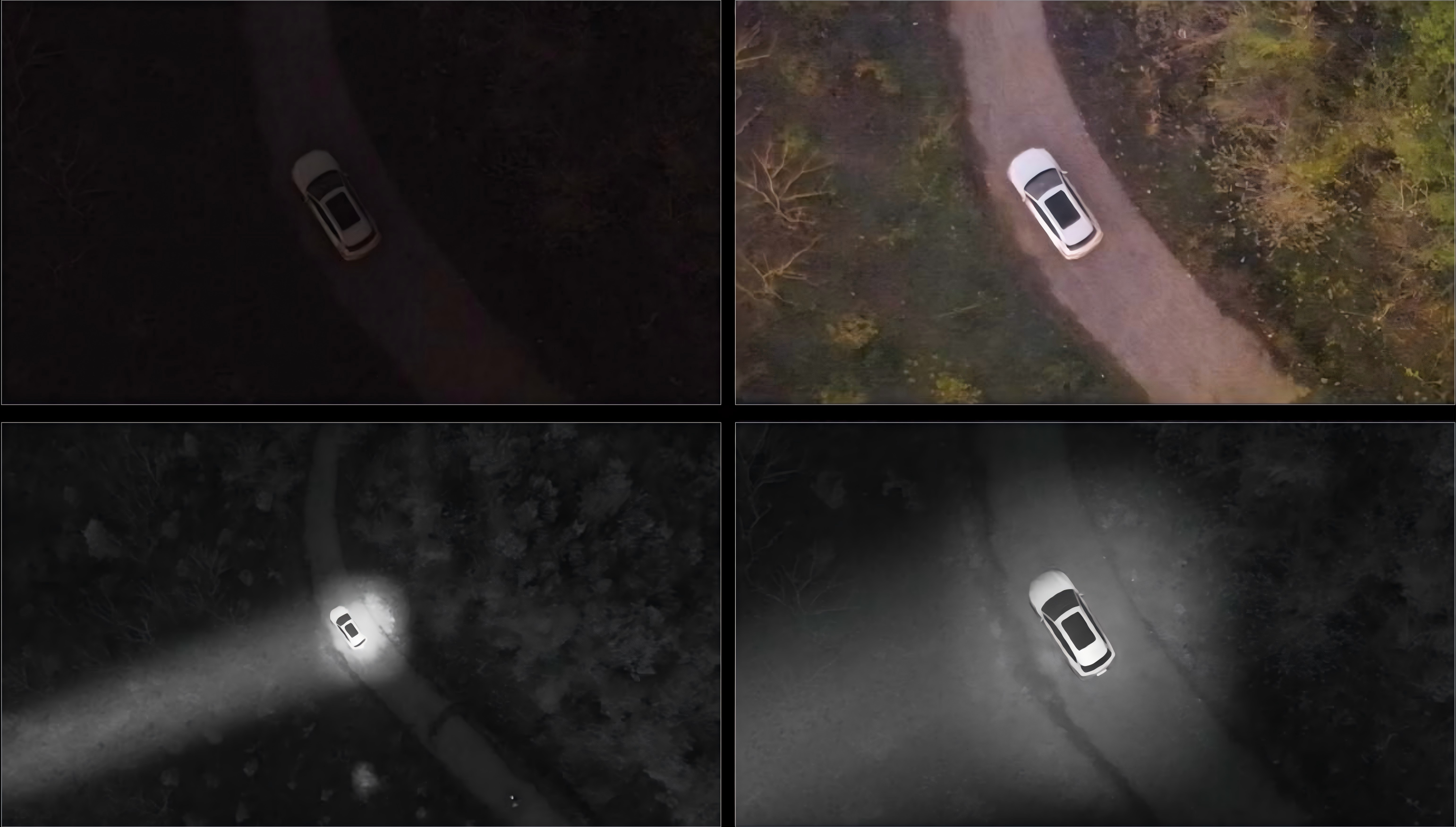

4K Night Vision for Seamless Operations in Total Darkness

4K AI-enhanced full-color night vision supports three selectable modes with ISO sensitivity reaching up to 2400000. IR Cut mode enables grayscale night vision by capturing the full 400-1000 nm light spectrum, delivering bright, clear imagery in complete darkness. When paired with the NIR auxiliary light, the system can clearly illuminate subjects up to 120 meters away in no-light environments.

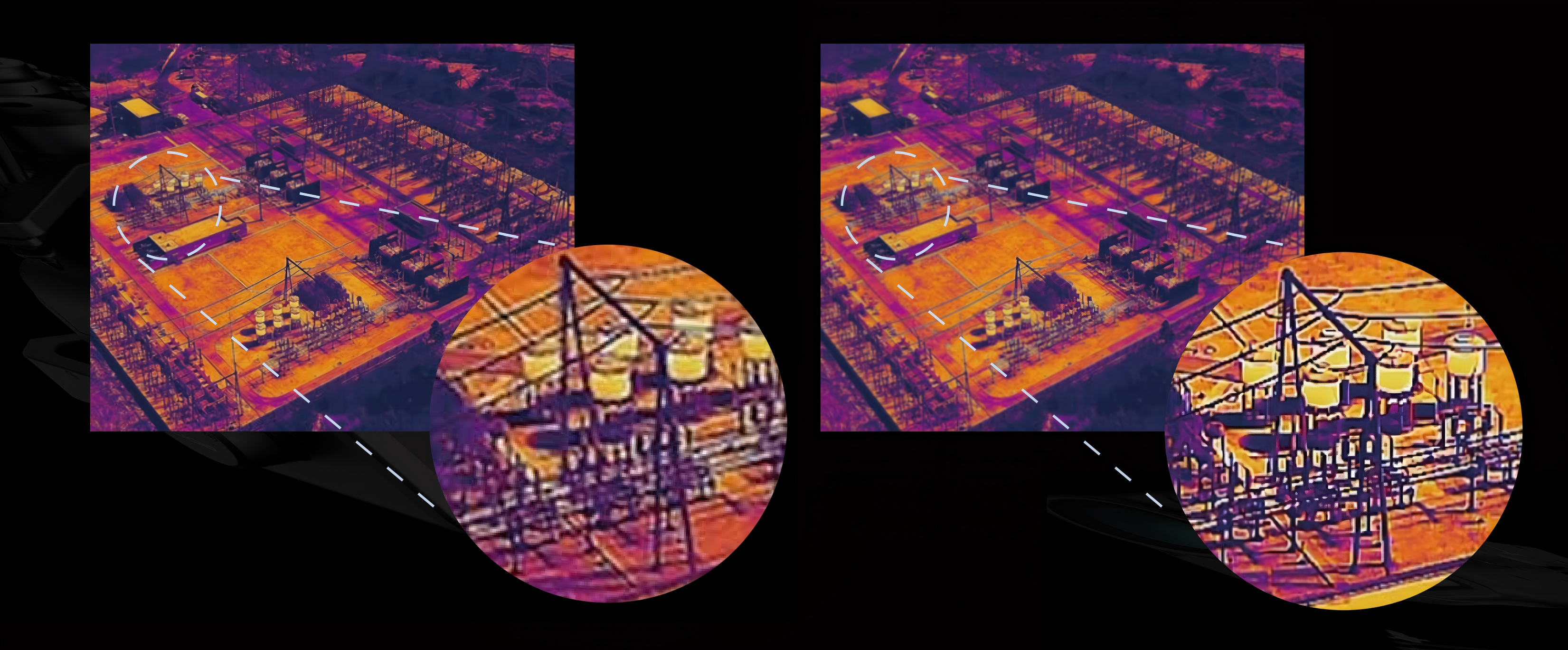

1K Infrared Imaging & 2K UHR Enhancement

The infrared thermal camera with a 25 mm focal length delivers native 1K resolution, which is enhanced to 2K through AI-powered UHR imaging. With up to 32x AI-powered UHR enhancement, every intricate detail is sharply revealed. Each device undergoes meticulous calibration of temperature measurement accuracy before delivery. A built-in temperature sensor provides real-time measurement correction to ensure consistently accurate readings.

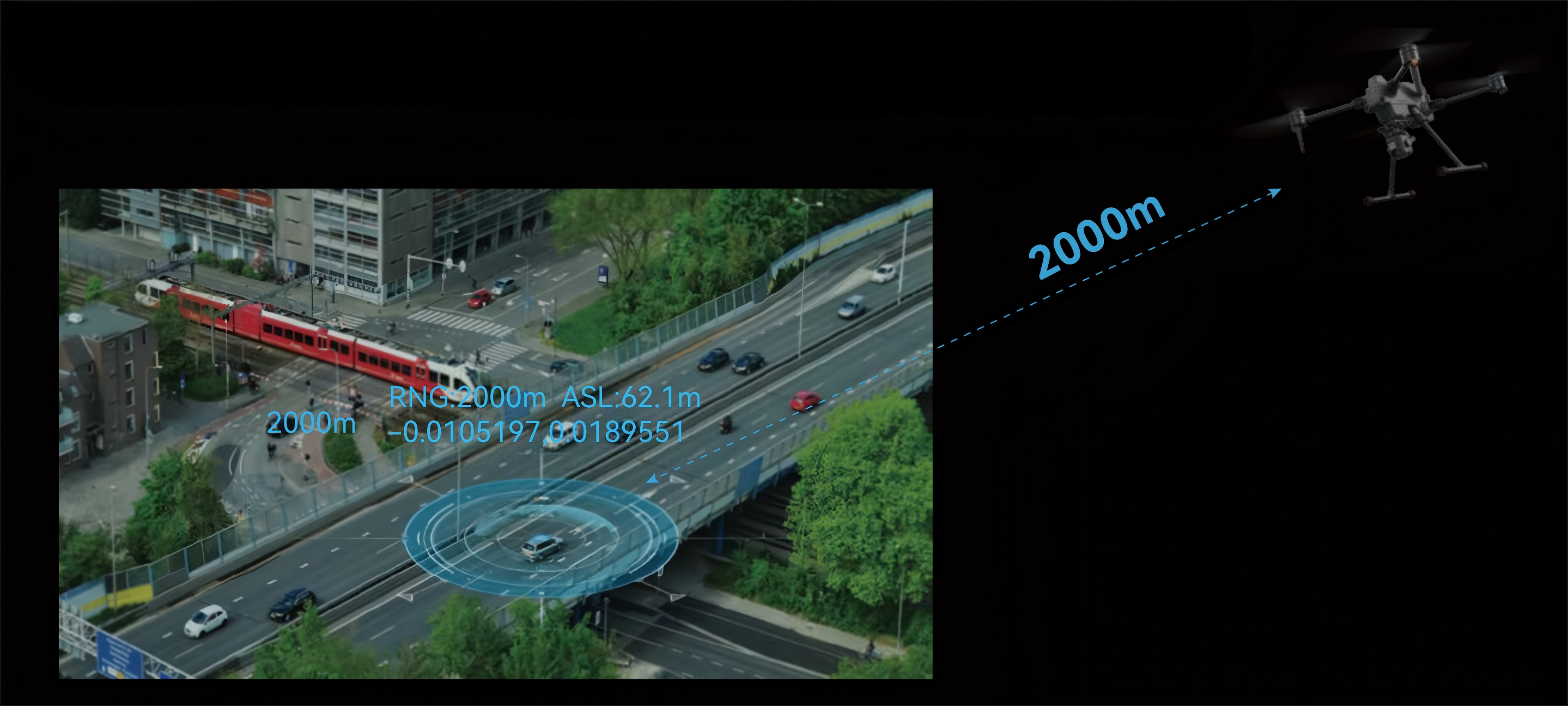

Laser Rangefinding up to 2000 m

The integrated laser rangefinder offers a maximum range of 2000 m. With intelligent laser-assisted pinpointing, the target’s coordinates (latitude and longitude) and distance from the aircraft can be measured with high accuracy.
